当前位置：US1881 优势热卖，大特价，可看现货
发布时间：2009-04-10 浏览：4008次

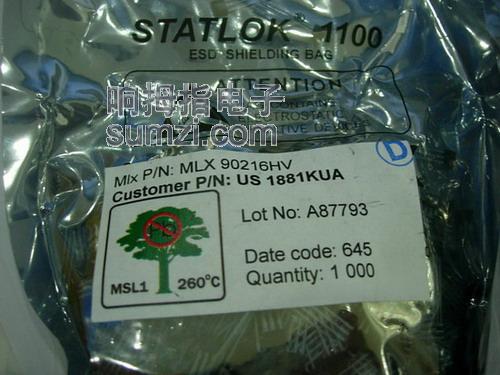

US1881KUA 是Melexis品牌的一款霍尔传感器，用于红外线、温度传感器，过滤由于读频率输入而引起的高电流转换, 防止温度过高，运用在低温及人造自动机械IC方面等。
封装 SIP3(TO-92)
厂家 Melexis
备注 全新原装无铅,可提供技术参数,公司现货,可看货,欢迎来电咨询
厂家 Melexis
备注 全新原装无铅,可提供技术参数,公司现货,可看货,欢迎来电咨询
DATASHEET PDF
US1881.pdf
US1881.pdf产品介绍：
The Melexis US1881 is a Hall-effect latch designed in mixed signal CMOS technology. The device integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output driver, all
in a single package.
Thanks to its wide operating voltage range and extended choice of temperature range, it is quite suitable for use in automotive, industrial and consumer applications.
The device is delivered in a Thin Small Outline Transistor (TSOT) for surface mount process and in a Plastic Single In Line (TO-92 flat) for through-hole mount.
Both 3-lead packages are RoHS compliant.
in a single package.
Thanks to its wide operating voltage range and extended choice of temperature range, it is quite suitable for use in automotive, industrial and consumer applications.
The device is delivered in a Thin Small Outline Transistor (TSOT) for surface mount process and in a Plastic Single In Line (TO-92 flat) for through-hole mount.
Both 3-lead packages are RoHS compliant.
Features and Benefits
Chopper stabilized amplifier stage
Optimized for brushless DC motor applications
Miniature high reliability package
Operation down to 3.5V
CMOS for optimum stability, quality and cost
Low power consumption
Ordering Information
温度后缀说明（Temperature Suffix）
E (-40°C to 85°C)
K (-40°C to 125°C)
L (-40°C to 150°C)
封装后缀说明（Package Code）
SO (SOT-23) or UA(TO-92)
