ES1453LVK 双通道锁存型霍尔IC
简要描述：
ES1453，双通道锁存开关霍尔传感器，2.7-24V
打印当前页
免费咨询：0755-83031813
发邮件给我们：sumzi@sumzi.com
- 产品概述
- 技术参数

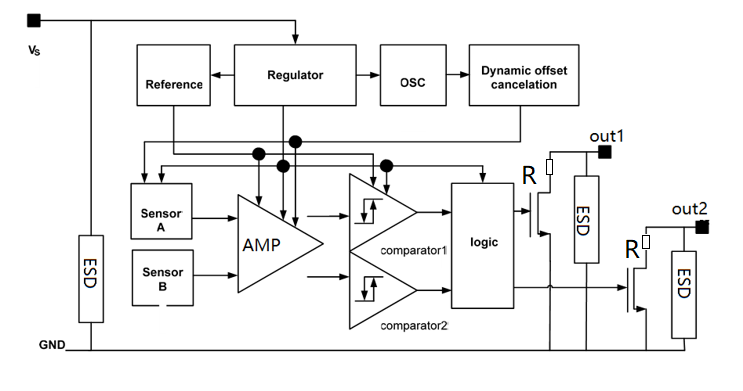

- 功能框图
- 数据表
产品概述：
The ES1453 is a dual channel switch Hall sensor with two Hall sensing elements. It outputs two digital signals for speed processing.
The ES1453 internally includes two Hall sensing elements located 0.95mm apart, an on-chip Hall voltage generator, voltage regulator for operation with supply voltage 2.8 to 24V, temperature compensation circuitry, small-signal amplifier, Hall sensor with dynamic offset cancellation system, Schmitt trigger and internal pull-up resistor. Signal processing of speed and signals is easy.
The ES1453 provides a variety of packages to customers: flat TO-94 for through-hole mount and SOT-23-6L for surface mount. All packages are RoHS compliant.
技术规格：
|
标题 |
文件类型 |
语言 |
格式 |
|
ES1453双通道锁存霍尔效应传感器 |
数据表 |
英语 |
|
特性：
- 0.95mm Hall Elements Spacing
- Dual channel and internal pull-up resisto
- High Magnetic Sensitivity: +/-18GS
- Supply Voltage Range: 2.8 ~ 24V
- Specified Operation Temperature Range:-40℃ ~ 150℃
- Antistatic ability 4KV HBM
应用：Magnetic encoder ; Speed detection ; Direction detection ; UAV ; Robots ; Fitness equipment
封装：SOT23-6L、TO94封装
