BUL128
HIGH VOLTAGE FAST-SWITCHING
NPN POWER TRANSISTOR

BUL128.pdf

1.STMicroelectronics PREFERRED
SALESTYPE
2.NPN TRANSISTOR
3.HIGH VOLTAGE CAPABILITY
4.LOW SPREAD OF DYNAMIC PARAMETERS
5.MINIMUM LOT-TO-LOT SPREAD FOR
RELIABLE OPERATION
6. VERY HIGH SWITCHING SPEED

APPLICATIONS:
 ELECTRONIC BALLASTS FOR
FLUORESCENT LIGHTING

DESCRIPTION
The device is manufactured using high voltage
Multi Epitaxial Planar technology for high
switching speeds and medium voltage capability.
It uses a Cellular Emitter structure with planar
edge termination to enhance switching speeds

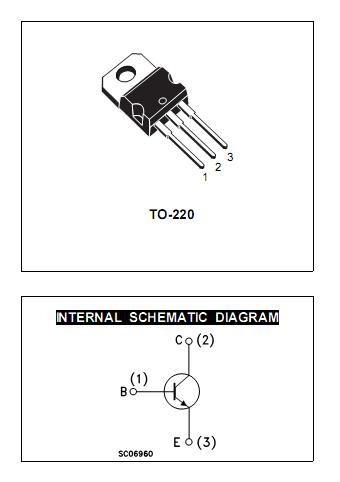

INTERNAL  SCHEMATIC  DIAGRAM
while maintaining the wide RBSOA.
The device is designed for use in lighting
applications and low cost switch-mode power
supplies.
