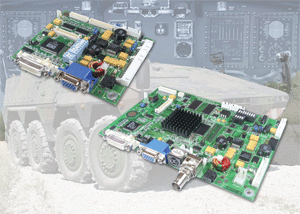

The HE-1400 and HE-1600 LCD controllers are designed for hardened systems in military and industrial applications. Both controllers feature wide 12 VDC ¡À 25% supply range, locking connectors, Mil-spec silicon resin conformal coatings, operating temperature ranges of -40º to 80ºC, and calculated MTBF in excess of 150 K hours (HE-1600) and 200 K hours (HE-1400).

The 4.2 x 3.6 in. 1400 model has DVI and ARGB inputs, supports both LVDS and TTL panels, and handles 4:3 format panels at up to SXGA and 6:9 panels at up to WXGA. The 7.05 x 4.74 in. 1600 model is a fully buffered, multi-sync interface a wide range of TFT panels up to UXGA resolution. Its flexible port architecture provides inputs for DVI, dual VGA channels for both both 4:3 and 16:9 format Composite Video, S-Video and Component Video across both 4:3 and 16:9 format panels.
