L297 霍尔传感器及步进机驱动IC优势分销商，只供应原装进品产品，量大可接受订货，提供技术资料及报价 0755-83283733

发布时间：2009-04-09 浏览：5558次

【产品名称】 L297
【产品类别】驱动IC
【产品用途】驱动器
【产品规格】 SO20/SIP15
【生产厂家】 ST
【技术参数】 L297 规格书下载 DATESHEET
【运用范围】运用于汽车、电动车、跑步机等方面

The L297/A/D Stepper Motor Controller IC gener-
　　ates four phase drive signals for two phase bipolar
　　and four phase unipolar step motors in microcom-
　　puter-controlled applications. The motor can be
　　driven in half step, normal and wawe drive modes
　　and on-chip PWM chopper circuits permit switch-
　　mode control of the current in the windings. A
　　feature of this device is that it requires only clock,
　　direction and mode input signals. Since the phase
　　are generated internally the burden on the micro-
　　processor,and theprogrammer, is greatly reduced.

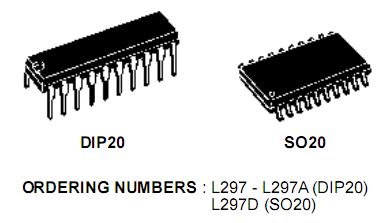

　　Mounted in DIP20 and SO20 packages,the L297
　　can be used with monolithic bridge drives such as
　　the L298N or L293E, or with discrete transistors
