L293 霍尔传感器及步进机驱动分销商，只供应原装进品产品，量大可接受订货，提供技术资料及报价

发布时间：2009-04-09 浏览：5980次

【产品名称】 L293
【产品类别】驱动IC
【产品用途】驱动器
【产品规格】 SO20/DIP16
【生产厂家】 ST
【技术参数】 L293 规格书下载 DATESHEET
【运用范围】运用于汽车、电动车、跑步机等方面

DESCRIPTION
　　The Device is a monolithic integrated high volt-
　　age, high current four channel driver designed to
　　accept standard DTL or TTL logic levels and drive
　　inductive loads (such as relays solenoides, DC
　　and stepping motors) and switching power tran-
　　sistors.
　

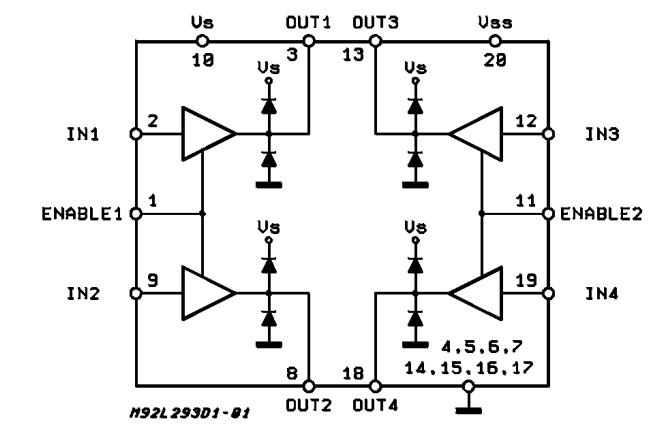

　To simplify use as two bridges each pair of chan-
　　nels is equipped with an enable input. A separate
　　supply input is provided for the logic, allowing op-
　　eration at a lower voltage and internal clamp di-
　　odes are included.
　　This device is suitable for use in switching appli-
　　cations at frequenciesup to 5 kHz.

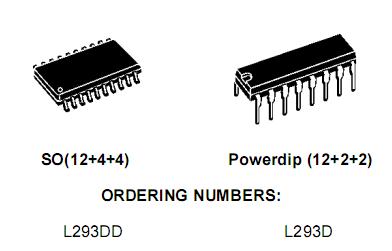

　　The L293D is assembled in a 16 lead plastic
　　packaage which has 4 center pins connected to-
　　gether and used for heatsinking
　　The L293DD is assembled in a 20 lead surface
　　mount which has 8 center pins connected to-
　　gether and used for heatsinking.
